Special products

Degasifiers

Degasifiers

The function of degasifiers is to suck the air bubbles that remain in the synthetic resin or composite material mixes and in silicone or similar compounds during their preparation. The presence of bubbles, in fact causes a drastic reduction of their technical features and negatively affects their appearance.
Degasifiers are composed of:
- One or two welded sheet steel autoclaves, featuring a perfect vacuum seal, equipped with transparent methacrylate lids that can be manually removed.
- An oil-bath rotating vane pump for high vacuum.
- One or two vacuum switches for a direct reading of the level of vacuum in the autoclave.
- One or two three-way manual valves for vacuum interception.
- A switchgear enclosed in a special protective casing.
- A profiled steel frame for assembling all the components.
Inside the autoclave, the degasifiers can reach a final level of vacuum equal to 99.5 %. With small modifications and with the aid of insulating or waterproofing resins these degasifiers can be used for vacuum-impregnating windings for electric motors, transformers, electric coils, etc.
Upon request they can also be supplied in different versions.
Product codes: DR10001 DR10002 D2R15001 D2R15002

CAD files on TraceParts
11.01
torna in cima
Mobile system for resin vacuum infusion

Mobile system for resin vacuum infusion

This system has been designed for allowing resin vacuum infusion moulding and composite fibre vacuum forming. The system is composed of:
- A welded sheet steel autoclave featuring a perfect vacuum seal, equipped with a transparent methacrylate lid that can be manually removed.
- An oil-bath rotating vane pump for high vacuum.
- A reducer for adjusting the required level of vacuum.
- A vacuum gauge, for a direct reading of the level of vacuum in the autoclave.
- A three-way manual valve for pump vacuum interception and for restoring the atmospheric pressure inside the autoclave.
- A two-way valve for vacuum interception at the application.
- Switchgear enclosed in a special casing.
- A profiled steel frame for assembling all the components mounted on wheels.
- A handle to move and place it.
Resin vacuum infusion moulding is carried out connecting the connector controlled by the two-way manual valve to the mould. The resin inside its container is sucked via the vacuum inside the mould, until it’s totally full. The resin in excess is collected in the autoclave. The same connector can be connected to the vacuum press bag for forming composite fibres.
The installed vacuum pumps can reach a maximum level of vacuum of 99.5% inside the autoclave. Therefore, this device can also be used as a degasifier. The vacuum reducer allows adjusting the level of vacuum within a minimum value of20% a maximum value of 99.5%.
Upon request they can also be supplied in different versions.
Product codes: DR100M01 DR100M02

CAD files on TraceParts
11.02
torna in cima
Electrical equipment for vacuum tests

Electrical equipment for vacuum tests

These devices have been created for testing the weldings and, therefore, the sealing of cellophane or PVC wrappings for food products.
In fact, the wrapping placed inside a bell jar tends to inflate because of the pressure differential created between the air at atmospheric pressure contained inside and the vacuum created inside the bell jar. The higher the level of vacuum reached in the bell jar and the greater the thrust that the air contained in the wrapping will exert on the walls and, therefore, on the weldings.
The devices for vacuum tests are composed of:
- A mobile transparent Plexiglass bell jar.
- A support surface with seal.
- A dry rotating vane vacuum pump.
- Two 2-way manual valves for vacuum interception.
- A vacuum gauge for a direct reading of the level of vacuum and the atmospheric air in the bell jar at the end of the cycle.
- A switchgear enclosed in a special protective casing with a digital vacuum switch to adjust the level of vacuum in the bell jar.
- A bent sheet steel frame with anti-vibration feet for assembling all the components described above.
The level of vacuum that can be reached inside the bell jar depends on the pump installed.
The test values are adjustable and can be automatically repeated.
Available in other versions upon request.
Product codes: ATS05 ATS20

CAD files on TraceParts
11.03
torna in cima
Equipment for vacuum tests

Equipment for vacuum tests

The function of these devices is to test the welding sealing in flow-pack, cellophane or food product wrappings.
They are composed of:
- A transparent Plexiglass cylindrical container into which the water is poured and the vacuum is created.
- A mobile transparent Plexiglass lid with, on its lower part, a perforated disc fixed via a pin which is for keeping the flow-pack wrapping submerged in the water, in the container and on its upper part, the instruments for managing and controlling the vacuum.
- A multiple ejector multi-stage vacuum generator.
- A check valve located on the generator suction inlet to prevent the air from returning into the container when the generator is not in operation.
- A sleeve valve for compressed air interception.
- A supply compressed air reducer equipped with pressure gauge.
- A 2-way manual valve for restoring the atmospheric pressure inside the container.
The wrapping submerged in the water in the container tends to inflate because of the pressure differential produced between the air at atmospheric pressure on its inside and the vacuum created in the container. The higher the level of vacuum reached in the bell jar and the greater the thrust that the air contained in the wrapping will exert on the walls and, therefore, on the weldings. Any air leak from the wrapping due to a defecting welding is proved by bubbles that indicate the exact point of the welding that’s leaking. The level of vacuum that can be reached inside the bell jar depends on the pump installed.
The test values are adjustable and can be automatically repeated.
Available in other versions upon request.
Technical features
Operating pressure: from 0.5 to 1000 absolute mbar
Fluid temperature: from -5 to +50°C
Level of filtration: 60 μ
Product code: ATP02 ATP03 ATP04 ATP07

CAD files on TraceParts
11.04
torna in cima
Suction units with syphon filter GA FS 5 and GA FS 10

Suction units with syphon filter GA FS 5 and GA FS 10

These suction units with syphon filter allow sucking fluids saturated with condensation or mixed with water and liquids. They share all the best technical features of syphon filters and vacuum generators. In fact, they keep liquids and solid impurities, while the vacuum generator can suck fluids saturated with vapours or liquid condensation without compromising its performance.
These devices are composed of:
- A standard syphon filter described in Chapter 5.
- A compressed air-fed multi-stage vacuum generator.
- A pneumatic vacuum switch for adjusting the level of vacuum
- A vacuum gauge for a direct reading of the level of vacuum in the container.
- A pneumatic valve for supplying the vacuum generator operated by the vacuum switch
- A sleeve valve for compressed air interception.
The level of vacuum, preset with the vacuum switch, is automatically maintained in the Plexiglass container. These suction units with syphon filter are suited for vacuum cup clamping systems for gripping glass, marble, granite, light alloys and in all those cases with a considerable presence of refrigerating liquids.
They are also recommended for suctioning creamy or muddy substances which can be difficult to handle with traditional pumps.
These suction assemblies are fed by compressed air at a pressure of 4-6 bar only. Available in other versions upon request.
Technical features
Operating pressure: from 0.5 to 1000 absolute mbar
Fluid temperature: from -5 to +50°C
Level of filtration: 60 μ
Product code: GAFS5 GAFS10

CAD files on TraceParts
11.05
torna in cima
Suction units with syphon filter GA FS 20 ES - GA FS 30 ES

Suction units with syphon filter GA FS 20 ES - GA FS 30 ES

These suction units with syphon filters share the same features and functions as the previous ones; their distinctive features are their size and the type of generator installed. Their functions are also the same.
These devices are composed of:
- A standard syphon filter described in Chapter 5.
- A compressed air-operated multi-stage vacuum generator with a built-in energy-saving system ES. - A vacuum gauge for a direct reading of the level of vacuum in the container.
- A shut off valve to intercept compressed air.
The level of vacuum, preset with the vacuum switch, is automatically maintained in the Plexiglass container. Like the previous ones, these suction units with syphon filter are also suited for vacuum cup clamping systems for gripping glass, marble, granite, light alloys and in all those cases with a considerable presence of refrigerating liquids.
They are also recommended for suctioning creamy or muddy substances which can be difficult to handle with traditional pumps.These suction assemblies are fed by compressed air at a pressure of 4-6 bar only. Available in other versions upon request.
Technical features
Operating pressure: from 0.5 to 1000 absolute mbar
Fluid temperature: from -5 to +50°C
Level of filtration: 60 μ
Product codes: GAFS20ES GAFS25ES GAFS30ES

CAD files on TraceParts
11.06
torna in cima

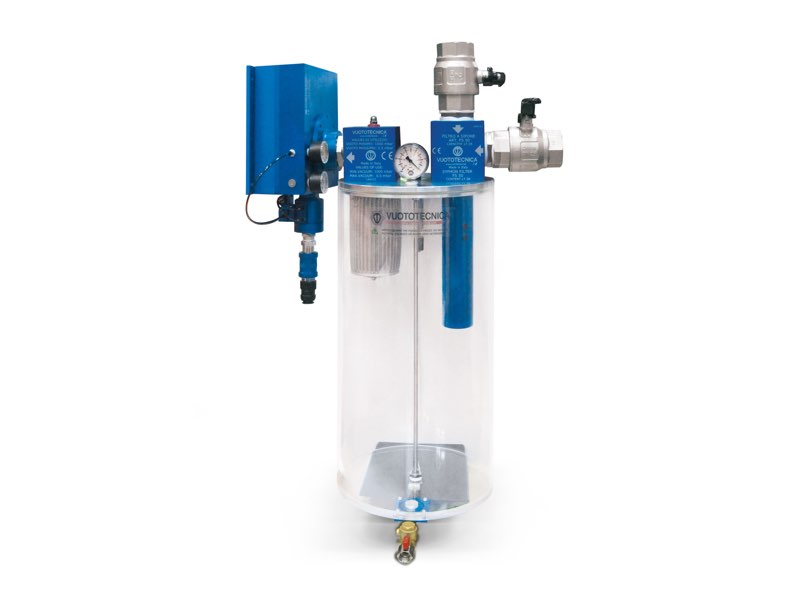

Safety suction units with syphon filter

Safety suction units with syphon filter

These units have the same functions as the previous ones, but they differ in their automation and composition. In fact, these devices are composed of:
- A standard syphon filter described in Chapter 5.
- Two compressed air-operated multi-stage vacuum generators with a built-in energy-saving system ES.
- A vacuum gauge for a direct reading of the level of vacuum in the container.
- Two sleeve valves for compressed air interception.
These safety suction units normally provide for the operation of one vacuum generator with subsequent automatic insertion of the other one for higher consumptions and when, for whatever reason, the plant level of vacuum goes below the preset minimum value. All this also guarantees continuous operation even in presence of a vacuum generator breakdown.
The level of vacuum, preset with the vacuum switch, is automatically maintained in the Plexiglass container. These suction units with syphon filter are suited for vacuum cup clamping systems for gripping glass, marble, granite, light alloys and in all those cases with a considerable presence of refrigerating liquids and an effective need to ensure the presence of vacuum throughout the entire production cycle.
They are also recommended for suctioning creamy or muddy substances which can be difficult to handle with traditional pumps.These suction assemblies are fed by compressed air at a pressure of 4-6 bar only. Available in other versions upon request.
Technical features
Operating pressure: from 0.5 to 1000 absolute mbar
Fluid temperature: from -5 to +50°C
Level of filtration: 60 μ
Product codes: GASFS20ES GASFS25ES GASFS30ES

CAD files on TraceParts
11.07
torna in cima
Liquid-sucking pump sets

Liquid-sucking pump sets

These pump sets are for sucking liquids and collect them inside their tanks. The maximum level difference that can be exceeded is approximately 9 metres.
They are composed of:
- A welded sheet steel large-capacity tank- A compressed air-fed multi-stage vacuum generator
- A digital vacuum switch for adjusting the level of vacuum within which to operate
- A vacuum gauge for a direct reading of the level of vacuum in the tank
- A liquid level visible warning light
- Two magnetic switches for minimum and maximum liquid level
- One three-way vacuum solenoid valve for resetting the atmospheric pressure in the tank, with consequent automatic discharge of the accumulated liquid
- Two vacuum reducers for level of vacuum adjustment at the application
- Three manual valves for vacuum interception
- A switchgear enclosed in a special protective casing for manual or automatic operation selectionLiquid-sucking pump sets are normally used for extracting the water contained in washing machine and dishwasher filters that cannot be automatically drained after their commissioning.
They are also recommended for transferring dense liquids and creamy or muddy substances.
Available in other versions upon request.
Product codes: DVL150 DVL300 DVL500 DVL1000

CAD files on TraceParts
11.08
torna in cima
Samples and equipment for demonstration use - Vacuum training box - VTBOX01

Samples and equipment for demonstration use - Vacuum training box - VTBOX01

A suitcase containing a sample of our most important products, guaranteeing an informative overview on the vacuum technology intended for industrial automation.
It is an excellent educational, training and information tool.
An easily transportable trolley shaped case.
Technical features
VTBOX01 weight: 26 kg

CAD files on TraceParts
torna in cima

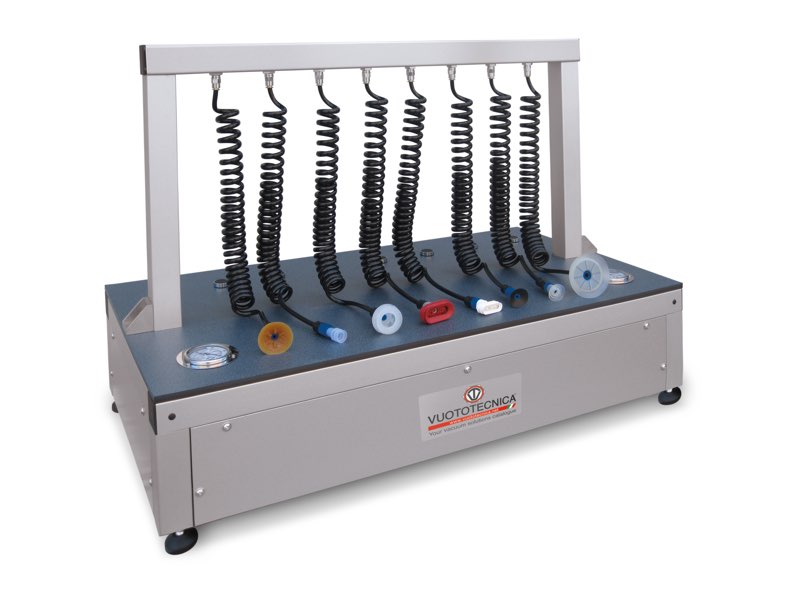

Samples and equipment for demonstration use - Test bench and tests for the selection of vacuum cups - BT01

Samples and equipment for demonstration use - Test bench and tests for the selection of vacuum cups - BT01

The device, equipped with 6 vacuum and 2 pneumatic sockets, lets users carry out vacuum or Bernoulli suction cups tests on the objects to be gripped or moved, to aid in correctly choosing gripping cups.
This is a useful tool to have at trade show exhibitions, in a showroom or in a test room, for gripping or handling demonstrations or for technical personnel training dedicated to vacuum technology.
The device is already equipped with its own vacuum generator and only needs to be connected to compressed air and to the electrical power line.
Contact our technical department for further information.
Technical features
Electrical power: Single-phase V230 ± 10% 50/60 Hz
Electric power: 1.5 kw
Compressed air consumption: 390 L/min 2bar
BT01 weight: 115 kg
Flight case 01 weight: 200 kg
Total weight: 315 kg

CAD files on TraceParts
torna in cima
Samples and equipment for demonstration use - Demonstration unit for the handling of powders and granulated products with flow generators CX - CONVY01

Samples and equipment for demonstration use - Demonstration unit for the handling of powders and granulated products with flow generators CX - CONVY01

The special shape of the flow generators with which this unit is supplied and their straight-flow working principle allow for the suctioning and handling of various nature products without interference.
As previously described, this device is also specially recommended for exhibitions at trade shows, showrooms or test rooms, for practical demonstrations on the handling and transfer of powders, granulated products, sawdust, grains, metal shavings, liquid or dry food products, etc.
Requires connection to compressed air and to the electrical power line.
Technical features
Electrical power: Single-phase V230 ± 10% 50/60 Hz
Electric power: 0.5 kw
Compressed air consumption: 390 L/min 2bar
CONVY01 weight: 90 kg
Flight case 01 weight: 200 kg
Total weight: 290 kg

CAD files on TraceParts
torna in cima
Samples and equipment for demonstration use - Equipped robot for gripping and handling objects with special vacuum cups and grippers - VACBOT

Samples and equipment for demonstration use - Equipped robot for gripping and handling objects with special vacuum cups and grippers - VACBOT

The system we offer is composed of a robot fixed to a work surface, programmable by means of a special keyboard, servo-assisted by a mini-compressor with a vacuum pump and a compressor, enclosed in a sturdy metal cabinet on wheels.
The robot can be configured and equipped in various ways, for gripping with vacuum cups or small Octopus surfaces, with repetitive gripping programs to better render the idea of its multiple gripping capabilities of different objects with different shapes.
This device is ideal for trade fairs or showrooms, since seeing it work highlights the full potential of its use in the automation and handling sector in general, with the help of vacuums.
Only needs to be connected to the electrical power line.
Technical features
Electrical power: Single-phase V230 ± 10% 50/60 Hz
Electric power: 3.5 kw
VACBOT weight: 475 kg
Flight case 02 weight: 275 kg
Total weight: 750 kg

CAD files on TraceParts
