Vacuum cup holders
| |
Micro vacuum cup holders
- Extremely reduced size and weight
- Stainless steel stem and spring
- Self-lubricating bush built in the threaded sleeve ensuring a perfect sliding of the stem and durability
- Indicated for Pick & Place units and handling machines for unloading plastic objects from a mould press
- Available in various versions with or without coupling
- Suitable for all vacuum cups with male M5 support
Product codes: 208005 208005SR 208005RR |
|
|
| |

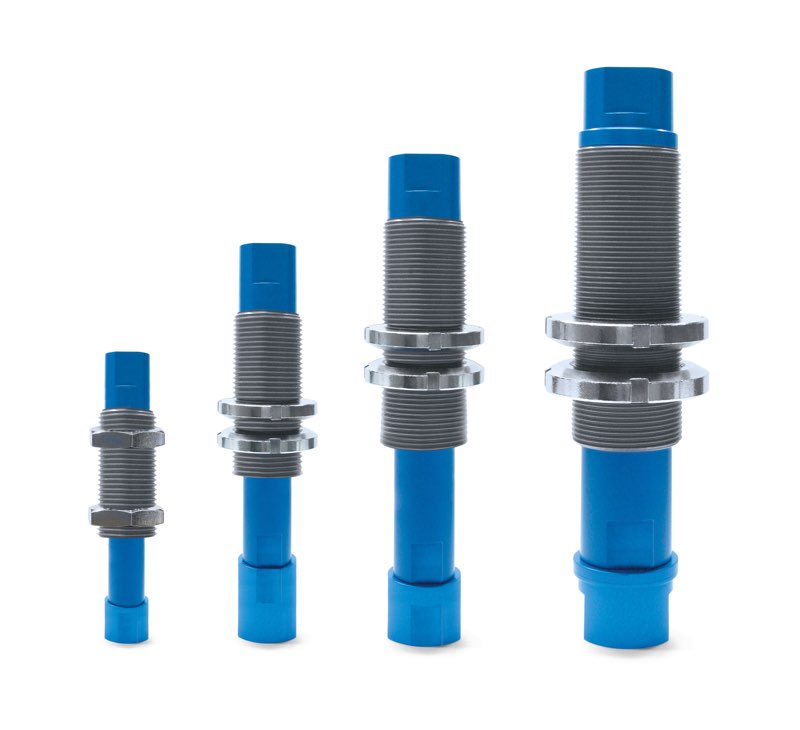

Anti-rotation vacuum cup holders with built-in spring and male or female connector
Anti-rotation vacuum cup holders with built-in spring are aluminium components designed to ensure high performance in gripping and handling systems. The aluminium structure offers lightness and strength, while the anti-rotation system prevents unwanted rotation of the vacuum cup or attachment during operation, ensuring precision and stability. The spring embedded inside the body protects the elastic mechanism from impact, dirt and contaminants, ensuring a smooth and consistent response.
The large inner passage cross-section allows for abundant vacuum flow, promoting rapid grip and release cycles even on large vacuum cups. The mounting adjustment is particularly wide thanks to the presence threaded bushing, which allows for precise positioning and adaptation to
different distances and configurations. The plastic sliding bushings ensure smooth, quiet movement with reduced maintenance requirements, contributing to the long operating life of the device. Despite its advanced features, the vacuum cup holder has small overall dimensions, making it easy to integrate
even in confined spaces or in applications where compact components are required. The system is equipped with two lock nuts, which ensure secure and stable fastening during mounting. The male and female threaded connections allow for quick, easy connection to the system, adapting to different mechanical configurations.
All these features make the vacuum cup holder ideal for use in robotics, Pick & Place systems, industrial automation and all applications where precision, reliability and ease of adjustment are required.
Product codes : VCH18F20 VCH18F35 VCH14F25 VCH14F50 VCH38F40 VCH38F80 VCH12F36 VCH18M20 VCH18M35 VCH14M25 VCH14M50 VCH38M40 VCH38M80 VCH12M36
|
|
|
| |
Mini vacuum cup holders
The main feature of the cup holders described on these pages is their reduced size, which results in a reduced weight and bulk. They allow use of even very small cups, guaranteeing, given the same diameter, the same performance as the larger series.
They are composed of:
- A brass stem for fastening the cup
- A threaded sleeve equipped with nuts, for mounting the vacuum up holder on the automation
- A spring to cushion the impact of the cup and to, at the same time, keep pressure with the load to be lifted
- A quick coupling for connection with the suction hose.
Product codes: 200430 200830 201030 201415 202515 203515 202530 202535 204530 205020 200650 201523 201850 201917 202023 203032 200735 203050 |
|
|
| |
Mini vacuum cup holders with male and female threaded connectors
The cup holders described on these pages share the same features as the previously described ones, but differ for their brass stem, which has 1/8” and 1/4” gas threaded female connection, for the exclusive installation of cups with male threaded support and for the vacuum connection, which can either be radial or axial, upon request.
Product codes: 200635 200735 201038 201048 201038M 201048M 201058M 208025B 208025 |
|
|
| |
Mini vacuum cup holders with built-in spring
For a further bulk and weight reduction, as well as to meet the requirements of discharge machines for plastic moulding presses manufacturers, these cup holders are made with an in-built spring and an anodised aluminium cup fixing stem.
Also these cup holders allow the installation of cups with male threaded support only.
The particular shape of the brass drive bush for fastening the cup holder to the machine prevents any rotation of the stem and, therefore, of the cup.
The vacuum connection is radial.
Product codes: 208015 208020 |
|
|
| |
Mini cup holders with compact stroke
The vacuum cup holders shown on this page have a shorter stroke and their special design that allow for further bulk and weight reduction in the overall dimensions and weight of these vacuum cups compared to normal mini vacuum cup holders. They are composed of:
- A brass stem for fastening the cup;
- A threaded sleeve equipped with nuts, for mounting the vacuum up holder on the automation;
- A spring to cushion the impact of the cup and to, at the same time, maintain constant pressure with the load to be lifted;
- A quick coupling for connection with the suction hose, consisting of one small hose connector as standard or two on request, radial They are particularly suited for small cups to be manually assembled with diameters ranging between 10 and 30 mm.
Product codes: 200535 201010 202510 201138 |
|
|
| |
Mini vacuum cup holders with built-in bush
The vacuum cup holders shown on this page have a special design that allows them to be assembled directly onto a vacuum manifold, significantly reducing the need for pipes and fittings.
The hexagonal threaded bush for cup holder assembly with the vacuum manifold is equipped with a seal and has the task of driving and holding the brass stem for fixing the vacuum cup.
They are composed of:
- A brass stem for fastening the cup;
- A G3/8” hexagonal threaded bush equipped with a seal; - A spring to cushion the impact of the cup and to, at the same time, maintain constant pressure with the load to be lifted.
Product codes: 202511 203511 200811 201011 200811M 201011M
|
|
|
| |
Mini vacuum cup holders with plunger valve
They share the same mechanical features at the other mini vacuum cup holders.
Their distinctive feature is the plunger valve solidly connected to a conical spear valve, which activates suction, and therefore creates vacuum, only when the cup comes into contact with the load to be lifted.
They are composed of:
- A brass stem for fastening the cup;
- A threaded sleeve equipped with nuts, for mounting the vacuum up holder on the automation;
- A spring to cushion the impact of the cup and to, at the same time, maintain constant pressure with the load to be lifted;
- A quick coupling for connection with the suction hose;
- A solidly connected plunger valve with a conical shutter.
Product codes: 201260 201560 201860 202060 202260 202560 203060 203560 204060 |
|
|
| |
Mini vacuum cup holders with plunger valve and built-in bush
The vacuum cup holders shown on this page and the following pages are characterised by their very compact size. They feature a hexagonal threaded bush, which allows them to be assembled directly to the vacuum manifold, with considerable savings in terms of pipes and fittings.
They are composed of:
- A brass stem for fastening the cup;
- A spring to cushion the impact of the cup and to, at the same time, maintain constant pressure with the load to be lifted;
- A quick coupling for connection with the suction hose;
- A plunger valve solidly connected to a conical spear valve, which activates suction and therefore creates a vacuum, only when the cup is in contact with the load to be lifted;
- The hexagonal threaded bush for cup holder assembly with the vacuum manifold is equipped with a seal and has the task of driving and holding the brass stem for fixing the vacuum cup.
Product codes: 201265 202565 203565
|
|
|
| |
Mini vacuum cup holders with plunger valve with no springing
They have the same function as the mini vacuum cup holders with plunger valve but, for further bulk reduction, the cushioning spring, the threaded pipe with nuts for fixing to the automation and the quick coupler have been removed.
This type of cup holder is to be directly assembled to the vacuum manifold. To allow quick assembly, its end is provided with a threaded male shank.
They are composed of:
- A brass stem for fastening the cup;
- A plunger valve solidly connected to a conical spear valve, which activates suction and therefore creates a vacuum, only when the cup is in contact with the load to be lifted.
Product codes: 201261 202561 203561 |
|
|
| |
Mini vacuum cup holders with built-in shut-off valve
In addition to having all the other features of the mini vacuum cup holders, these also have a built-in shut-off valve. The function of the shut-off valve
is to automatically close suction when the cup is not in contact with the surface of the load to be handled or in case of a faulty grip or of considerable transpiration, thus preventing the reduction of the level of vacuum on
the remaining cups of the system that are regularly gripping a load. The advantage of this is that the placement or the exclusion of the non-gripping cups is no longer binding. Vacuum cups with a minimum diameter of 10 mm and maximum diameter of 50 mm can be assembled on these cup holders, provided they have a 1/8 “male threaded gas support.
They are composed of:
- A brass stem for fastening the cup;
- A threaded sleeve equipped with nuts, for mounting the vacuum up holder on the automation;
- A spring to cushion the impact of the cup and to, at the same time, maintain constant pressure with the load to be lifted;
- A quick coupling for connection with the suction hose;
- A shut-off valve.
Product codes: 209935
|
|
|
| |
Mini anti-rotation vacuum cup holders
The technical features are the same as for the mini vacuum cup holders, with their distinctive features being their brass stem with hexagonal cross-section and the steel drive bushwith hexagonal hole. This prevents the stem from rotating on its axis, and, as a result, also the cup and its support from rotating. They are suited for cups with male or female support with diameters ranging from 10 mm to 60 mm, but they have been specially designed for the installation of rectangular, concave and elliptical cups.
They are composed of:
- A brass stem with a hexagonal cross-section;
- A threaded sleeve equipped with nuts, for mounting the vacuum up holder on the automation;
- A spring to cushion the impact of the cup and to, at the same time, maintain constant pressure with the load to be lifted;
- A quick coupling for connection with the suction hose.
Product codes: 209508 209528 209538
|
|
|
| |
Mini vacuum cup mount with magnetic switch
These cup holders share the same technical features at the other mini vacuum cup holders.
They are equipped with a magnetic sensor built into the cup holders to provide an electric signal to the machine every time the vacuum cup performs gripping.
This is the reason why they are recommended to be used on piece counter handlers, boxing machines and in all those cases in which the presence of the gripped object is to be guaranteed. These cup holders have been designed for gripping chocolate, snacks, croissants and similar products and they are currently made in the version represented on this page.
They are composed of:
- A brass stem for fastening the cup;
- A threaded sleeve equipped with nuts, for mounting the vacuum up holder on the automation;
- A spring to cushion the impact of the cup and to, at the same time, maintain constant pressure with the load to be lifted;
- A quick coupling for connection with the suction hose;
- A magnetic sensor equipped with a 3-metre connection cable;
- An anodised aluminium body to protect the magnetic sensor.
Product codes: 209902 209903 |
|
|
| |
Mini vacuum cup holders fix
Fix vacuum cup holders have been designed to adjust the height of the vacuum cups with support thanks to the threading along the entire length of the threaded bush. The ends are female threaded for mounting the vacuum cup with support and the connector.
They are composed of:
- A threaded bush equipped with nuts, for mounting the vacuum up holder on the automation;
- A quick coupling for connection with the suction hose.
Product codes: 207001 207005
|
|
|
| |
Basic vacuum cup holders
These basic cup holders are built in a simple and rational way, guaranteeing maximum sturdiness and duration. They are composed of:
- A brass stem for fastening the cup;
- A nickel-plated steel threaded sleeve equipped with anti-friction bushes for quick assembly of the cup to the automation;
- A spring to cushion the impact of the cup and to, at the same time, maintain constant pressure with the load to be lifted;
- A quick coupling for connection with the suction hose.
Product codes: 022510 022515 022724 023515 024510 024515 025020 021228 021265 011295 026515 027624 028020 028510 0211010 0211015 022023 023032 023050 021028M 021065M 021095M 021228M 021265M 011295M 025250 025335 025630 |
|
|
| |
Basic vacuum cup holders with male and female threaded connectors
These basic cup holders are built in a simple and rational way, guaranteeing maximum sturdiness and duration. They are composed of:
- A brass stem for fastening the cup;
- A nickel-plated steel threaded sleeve equipped with anti-friction bushes for quick assembly of the cup to the automation;
- A spring to cushion the impact of the cup and to, at the same time, maintain constant pressure with the load to be lifted;
- A quick coupling for connection with the suction hose.
Product codes: 020828 020865 020895 020828M 020865M 020895M 021028 021065 021095 021028M 021065M 021095M 021128 021165 021195 021128M 021165M 021195M 021228 021265 021295 021228M 021265M 021295M
|
|
|
| |
Basic vacuum cup holders with plunger valve
They share the same mechanical features as basic vacuum cup holders. Their distinctive feature is the plunger valve solidly connected to a conical spear valve, which activates suction, and therefore creates vacuum, only when the cup comes into contact with the load to be lifted.
They are composed of:
- A brass stem for fastening the cup;
- A nickel-plated steel threaded sleeve equipped with anti-friction bushes for quick assembly of the cup to the automation;
- A spring to cushion the impact of the cup and to, at the same time, maintain constant pressure with the load to be lifted;
- A quick coupling for connection with the suction hose;
- A solidly connected plunger valve with a conical shutter.
Product codes: 034510 036010 036515 038020 038510 038515 0311010 |
|
|
| |
Basic vacuum cup holders with no springing
They have the same function as basic vacuum cup holders with plunger valve but are designed to be used where compensation is not necessary, so they do not have a cushioning spring, threaded pipe with nuts for fixing to the automation, or quick coupler.
This type of cup holder is to be directly assembled to the vacuum manifold. To allow quick assembly, its end is provided with a threaded male shank.
They are composed of:
- A brass stem for fastening the cup;
- A solidly connected plunger valve with a conical shutter.
Product codes: 034511 036011 036516 038021 038511 038516 0311011 035041
|
|
|
| |
Basic vacuum cup holders with built-in shut-off valve
Along with all the other features they share with the other basic vacuum cup holders, , these have a built-in shut-off valve. The function of the shut-off valve is to automatically close suction when the cup is not in contact with the surface of the load to be handled or in case of a faulty grip or of considerable transpiration, thus preventing the reduction of the level of vacuum on the remaining cups of the system that are regularly gripping a load. The advantage of this is that the placement or the exclusion of the non-gripping cups is no longer binding. Vacuum cups with a minimum diameter of 10 mm and maximum diameter of 50 mm can be assembled on these cup holders, provided they have a 1/8" male threaded gas support.
They are composed of:
- A brass stem for fastening the cup;
- A nickel-plated steel threaded sleeve equipped with anti-friction bushes for quick assembly of the cup to the automation;
- A spring to cushion the impact of the cup and to, at the same time, maintain constant pressure with the load to be lifted;
- A quick coupling for connection with the suction hose;
- A shut-off valve.
Product codes: 029928 029965 029995 |
|
|
| |
Basic articulated vacuum cup holders
The technical and mechanical features are the same as for the basic vacuum cup holders. Their distinctive feature is their articulated joint in hardened steel, which allows the flat cups installed on these cup holders to adapt themselves to the loads to be lifted with slightly tilted surfaces, as well as to compensate possible verticality errors that can arise between the cup holder and the automation fixing support.
They are composed of:
- A brass stem for fastening the cup;
- A nickel-plated steel threaded sleeve equipped with anti-friction bushes for
quick assembly of the cup to the automation;
- A spring to cushion the impact of the cup and to, at the same time, maintain
constant pressure with the load to be lifted;
- A quick coupling for connection with the suction hose;
- An articulated joint in galvanised steel.
Product codes: 026520 028520 0211020 0211022 |
|
|
| |
Basic anti-rotation vacuum cup holders
The technical features are the same as for the basic vacuum cup holders, with their distinctive features being their brass stem with hexagonal section and the steel drive bush with hexagonal hole. This prevents the stem from rotating on its axis, and, as a result, also the cup and its support from rotating.
They are suited for cups with male or female support with diameters ranging from 45 mm to 110 mm, but they have been specially designed for the installation of rectangular, concave and elliptical cups.They are composed of:
- A brass stem with a hexagonal cross-section;
- An externally threaded sleeve with an internal hexagonal cross-section, equipped with ring nuts for mounting the vacuum cup holder to the automation;
- A spring to cushion the impact of the cup and to, at the same time, maintain constant pressure with the load to be lifted;
- A quick coupling for connection with the suction hose.
Product codes: 029528 029565 029595 0295281/4 0295651/4 0295951/4
|
|
|
| |
Basic vacuum cup holders fix
Fix vacuum cup holders have been designed to adjust the height of the vacuum cups with support thanks to the threading along the entire length of the threaded bush. The ends are female threaded for mounting the vacuum cup with support and the connector. They are composed of:
- A threaded bush equipped with nuts, for mounting the vacuum up holder on the automation;
- A quick coupling for connection with the suction hose.
Product codes: 029101 029105 029106
|
|
|
| |
Special vacuum cup holders
These special vacuum cup holders have been designed to lift and handle heavy loads and to withstand heavy-duty and continuous workloads in dusty or damp environments.
They are composed of:
- A nickel-plated steel stem for fastening the vacuum cup;
- A threaded brass bush, equipped with two anti-friction; bushings, fitted with two ring nuts for fastening the vacuum cup holder to the automation;
- A spring to cushion the impact of the cup with the load to be lifted;
- A safety washer;
- A quick coupling for connection with the suction hose.
Product codes: 068510 068515 069024 0610040 0610010 0611015 0611024 0615010 0615036 0615015 0620010 0625010 0622010OF 0622010NF 0622010A 0630010 0635010 067542 0611030 0611058 0615074 0625030
|
|
|
| |
Special vacuum cup holders with male and female threaded connectors
The actual springing stroke is:
- For height C= 55 mm 37 mm
- For height C= 110 mm 84 mm
Product codes: 061255M 0612110M 061255 0612110 061155M 0611110M 061355M 0613110M 061455M 0614110M 061555M 0615110M |
|
|
| |
Special vacuum cup holders for bellows cups
They share the same mechanical features at the special vacuum cup holders. The addition of a plunger valve solidly connected to a conical spear valve, which activates suction, and therefore creates vacuum, only when the cup comes into contact with the load to be lifted.
With these cup holders, it is no longer necessary to install cocks on the suction hoses; for this reason, they are recommended in all those cases in which there is a chance that not all the cups come into contact with the load to be lifted (because of an uneven or incomplete load).
The actual springing stroke is:
- For height C= 55 mm 37 mm
- For height C= 110 mm 84 mm
Product codes: 068520 068522 0611020 0611022 0615020
|
|
|
| |
Special vacuum cup holders with push valve
They share the same technical and mechanical features at the special vacuum cup holders. Their distinctive feature is the push valve on the cup support, which activates suction, and therefore creates vacuum, only when the cup is in contact with the load to be lifted.
With these cup holders, it is no longer necessary to install cocks on the suction hoses; for this reason, they are recommended in all those cases in which there is a chance that not all the cups come into contact with the load to be lifted (because of an uneven or incomplete load).
The same push valve can also be applied with no modification to the special articulated cup holders.
The actual springing stroke is:
- For height C= 55 mm 37 mm
- For height C= 110 mm 84 mm
Product codes: 0615022 0620020 0625020 0630020 0635020
|
|
|
| |
Special vacuum cup holders with built-in shut-off valve
Along with all the other features they share with the other special cup holders, these also have a built-in shut-off valve.
The purpose of the shut-off valve is to automatically close suction when the cup is not in contact with the surface of the load to be handled or in case of a faulty grip or of considerable transpiration. This thus prevents the reduction of the level of vacuum on the remaining cups of the system which are regularly handling the load.
The clear advantage of this system is that the positioning or the exclusion of the non-gripping cups are no longer binding. Cups with diameters between 85 mm and 150 mm can be assembled onto these cup holders, as long as they are provided with a threaded 3/8” gas female support.
The actual springing stroke is:
- For height C= 55 mm 37 mm
- For height C= 110 mm 84 mm
Product codes: 069955 0699110
|
|
|
| |
Special articulated vacuum cup holders
The distinctive feature of these cup holders is their articulated joint in hardened steel, which allows the flat cups installed on these cup holders to adapt themselves to the loads to be lifted even if not completely parallel with the cup plane, as well as to compensate possible verticality errors that can arise between the cup holder and the automation fixing support.
Their technical and mechanical features are the same as the other previously described special vacuum cup holders.
The actual springing stroke is:
- For height C= 55 mm 37 mm
- For height C= 110 mm 84 mm
Product codes: 0611012 0611017 0615012 0615017 0620012 0625012 0622012OF 0622012NF 0622012A 0630012 0635012
|
|
|
| |
Special articulated vacuum cup holders without GS articulated joint
Unlike the ones previously described, these special articulated vacuum cup holders have an articulated joint housed in the cup support. This has allowed a reduction of the overall dimensions without affecting performance.
The actual springing stroke is:
- For height C= 55 mm 37 mm
- For height C= 110 mm 84 mm
Product codes: 0611032 0615032
|
|
|
| |
Special articulated cup holders with compact stroke
Marble and glass sheets are usually handled with cups that take them from a horizontal plane and place them vertically or vice versa. These special cup holders with compact stroke have been designed to minimise the lever forces between the cup and the machine fixing bush during the rotation of the sheets, as well as their sliding on the cups.
They share all the technical features of the other special cup holders but their overall dimensions are reduced to the minimum, by housing the articulated joint in the cup support, thus reducing the steel stem and the spring stroke length and modifying the brass bush, in order to allow it to be screwed directly onto the machine.
Moreover, a special non-slip plastic coating fixed onto the cup support prevents the lifted load from slipping.
Product codes: 0611042 0612742 0615042 |
|
|
| |
Special vacuum cup holders for bellows cups
The actual springing stroke is:
- For height C= 55 mm 37 mm
- For height C= 110 mm 84 mm
Product codes: 067542 0611030 0615030 0618030 0611058 0615074 0625030
|
|
|
| |
Special stainless steel anti-rotation vacuum cup holders
Designed for the robot-automotive sector, these cup holders offer ideal solutions to various handling problems that arise in all industrial sectors.
In addition the characteristics of the previously described special vacuum cup holders, their distinctive features are their brass stem with hexagonal cross-section and the steel drive bush, also with hexagonal hole. This structure prevents the stem and, as a result, the cup assembled onto it from rotating on its axis.
The drive bush is equipped with two fine thread ring nuts to guarantee an accurate fastening of the cup holder to the automation. Moreover, the two ends of the stem, also in stainless steel, are threaded male or female and interchangeable. The straight quick coupler for the connection to the suction hose is screwed to one end, while the cup with support is assembled onto the other end.
They are suited for cups with a diameter between 40 mm and 200 mm, although they are especially useful for the assembly of rectangular or elliptical vacuum cups.
The actual springing stroke is:
- For height C= 55 mm 37 mm
- For height C= 110 mm 84 mm
Product codes: 065580 065581 065582 0611080 0611081 0611082
|
|
|
| |
Special anti-rotation vacuum cup holders with male threaded connector
The actual springing stroke is:
- For height C= 55 mm 37 mm
- For height C= 110 mm 84 mm
Product codes: 065590 065591 065592 065593 065594 065595 065596 0611090 0611091 0611092 0611093 0611094 0611095 0611096 |
|
|
| |
Special anti-rotation vacuum cup holders with spherical swivel support
In addition the characteristics of the previously described special anti-rotation vacuum cups, these cup holders are provided with a nylon spherical swivel support which allows to place and keep the cup in the desired place. Their fixing support is made with aluminium and is composed of two parts that, screwed together, allow to block the spherical joint, thus keeping the vacuum cup holder in place.
They are suited for cups with a diameter between 40 mm and 200 mm, although they are especially useful for the assembly of rectangular or elliptical vacuum cups.
The actual springing stroke is:
- For height C= 55 mm 37 mm
- For height C= 110 mm 84 mm
Product codes: 0655100 0655101 0655102 06110100 06110101 06110102 0655110 0655111 0655112 0655113 0655114 0655115 0655116 06110110 06110111 06110112 06110113 06110114 06110115 06110116 |
|
|
| |
Special vacuum cup holders with double springing
All the special vacuum cup holders previously described can be provided in the double springing version.
The cup holder fixing bush is located between two springs: the lower one cushions the impact of the cup with the load to be lifted during the approach phase, while the upper one cushions the impact of the bush with the cup holder end and gradually loads the cup during the lifting phase.
These cup holders are especially recommended when the load to be lifted is very heavy, rough or not perfectly flat.
The actual springing stroke is:
- For height C= 55 mm 37 mm
- For height C= 110 mm 84 mm
Product codes: 068513 068517 0611013 0611016 0615013 0615018 0620013 0625013 0622013OF 0622013NF 0622013A 0630013 0635013
|
|
|
| |
Special articulated vacuum cup holders with double springing
The distinctive feature of these cup holders is their articulated joint in hardened steel, which allows the flat cups installed on these cup holders to adapt themselves to the loads to be lifted even if not completely parallel with the cup plane, as well as to compensate possible verticality errors that can arise between the cup holder and the automation fixing support.
The cup holder fixing bush is located between two springs: the lower one cushions the impact of the cup with the load to be lifted during the approach phase, while the upper one cushions the impact of the bush with the cup holder end and gradually loads the cup during the lifting phase.
These cup holders are especially recommended when the load to be lifted is very heavy, rough or not perfectly flat.
The actual springing stroke is:
- For height C= 55 mm 37 mm
- For height C= 110 mm 84 mm
Product codes: 0611014 0611018 0615014 0615019 0620014 0625014 0622014OF 0622014NF 0622014A 0630014 0635014
|
|
|
| |
Spherical articulated joints
Our spherical articulated joints are made with hardened steel.
Assembled to the cup holders, they compensate offsets, orthogonality and flatness errors that often arise between the cups and the surface of the load to be lifted.
Product codes: GSM8 GSM12 GSM16
|
|
|
| |
Ball joint couplings with GSL axial vacuum connection
This series of couplings was designed to be installed on suckers with support, especially those that are flat or that have little lip, in order to allow them to easily adapt to the gripping surface of the load to be picked up, even if not perfectly parallel to the plane of the sucker itself or to compensate for any perpendicularity errors that often occur between the sucker holder and the fixing support of the automated device. The vacuum connection is axial and the hold is guaranteed by a special seal, always in contact with the ball joint. The sucker installed on them is free to rotate 360° degrees on its axis and to tilt up to 15°.
The joints are made entirely of brass, with the exception of the ball pivot, which is made of stainless steel. They can be fastened to the sucker using either the female or male threaded connection.
Product codes: GSL1/8 GSL1/4 GSL 3/8 GSL1/2 |
|
|
| |
Positionable ball joint couplings with axial vacuum connection
The positionable ball joints couplings in anodised aluminium allow the installed vacuum cups to be rotated 360° and to be tilted by up to 35° in order to properly position them with respect to the gripping surface on the object to be handled, while at the same time ensuring a perfect grip and proper suction through the joint itself.
Product codes: GSV1/8 GSV1/4 GSV3/8 GSVF1/8 GSVF1/4 GSVF3/8
|
|
|
| |
Cup holder fixing supports
The first two supports shown in this page are made with stainless steel and are suited for fastening the cup holder to the machine by means of a slotted cylindrical pin or a spherical pin housed in the machine.
The third support, on the other hand, is made with aluminium and it is composed of two parts that, screwed together, block the spherical joint, allowing to keep the cup holder in the desired position.
Product codes: 00FCH10 00FCH11 00FCH20 00FCH21 FCH16 |
|
|
| |
Vacuum cup holder fixing supports
The supports described in the following in these pages are made with galvanised sheet steel and they are used to fasten the various types of cup holders to the machine, generally made up of a square tube frame.
The screw or the handle with which they are equipped quickly block the support in position.
Product codes: SFP01 SFP02 SFP03 SFP04 SFP05 SFP06 SFP07 |
|
|
|
